CY Laser CYT5 Laser Tube Cutting System

Description

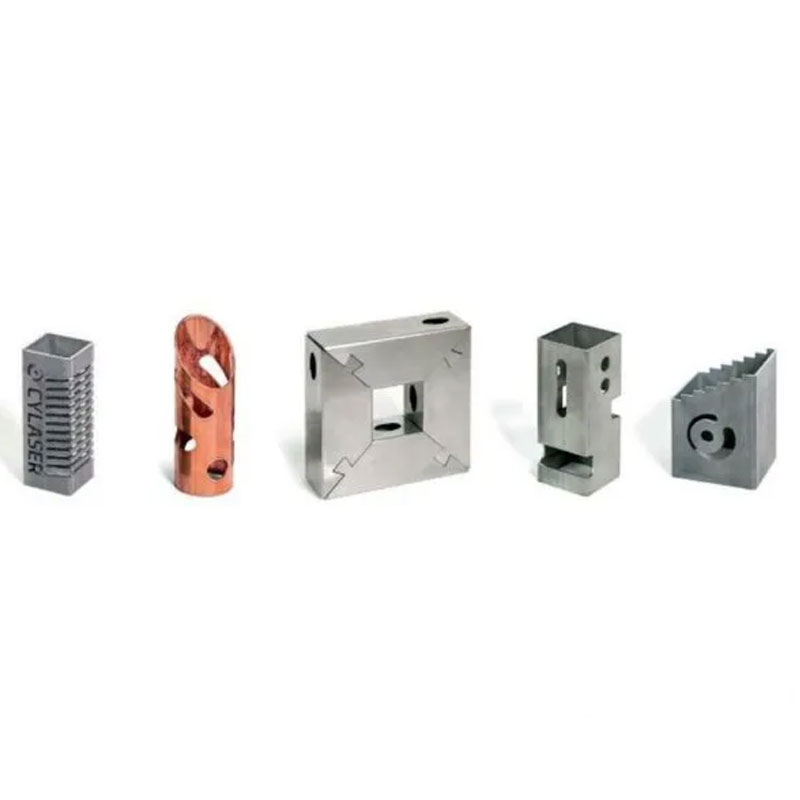

CYT5: CY-LASER’S SYSTEM TO CUT TUBES HAVING DIFFERENT PROFILES WITH MINIMUM OF 15MM TO MAXIMUM 225MM DIAMETER AND MANAGE LOADS FROM 20 TO 40 KG/M.
Main features:

– Unique construction philosophy, use of Off-the-Shelf components
– EVO III proprietary cutting head, the most advanced in fiber laser industry, being the result of a very long experience in this
specific process
– User friendly interface and dual versions CAD-CAM software 2D and 3D modulation
– Innovative modular structure to meet customer’s different needs
– Tube loading: manual, automatic, step loader, bundle loader. All solutions can be integrated with automatic storages (single
tube or bundle of tubes)
– Collision control systems through a magnetic breakaway torch
– Possibility to perform cutting samples at the machine
– Automatic setting of clamps with adjustment of jaws for a remarkable reduction of production change time
– Adaptive tube clamping with automatic adjustment for more effective closure on material of any thickness.
– Maximum suction guaranteed during entire processing time
– Automatic scrap conveyor.

MODEL CYT5

WORKING AREA – X axis 6,500 mm
– Y axis – 400 mm
– Z axis – 250 mm
Round tube (min/max) – 15/127 mm
Square tube (min/max) – 15×15 / 90×90 mm
Rectangular tube (min/max) – 15×20 mm

LOADING/UNLOADING CAPACITY
Loading capacity – 20 kg/mt
Tube storage Capacity – 3000 kg
Tube length (min/std/option) – 3250 / 6500 / 8500 mm
Max unloading capacity options (std/option/option) – 3000 / 4500 / 6000 mm

Automatic loading type Step Loader
Bundle Loader
Step Loader
Bundle Loader
Tube loading time – 20 sec.

SPEED
Minimum and maximum working speed – 150 / 30.000 mm/min.
Positioning speed (X/Y axis) – 100,000 mm/min.
Acceleration mm/sec2 – 14,700 mm/sec2
Spindle rotation speed – 360 grad/sec

ACCURACY
Mechanical repeatability accuracy – 0,03mm
Cut perpendicularity (over each mm of thickness) – 0,01 mm
Minimum program increment – 0,00 mm
